Name

 pipe clamps fittings

Application:

Hand railing, safety guardrails, fencing, playground equipment, shop fitting, milking parlours, racking, sports practice nets, greenhouses, exhibition stands, roof top fall prevention, pedestrian barriers and wheelchair access ramps, etc.

Material Grade:

BS EN 1562 1997 black heart malleable iron

Surface Treatment:

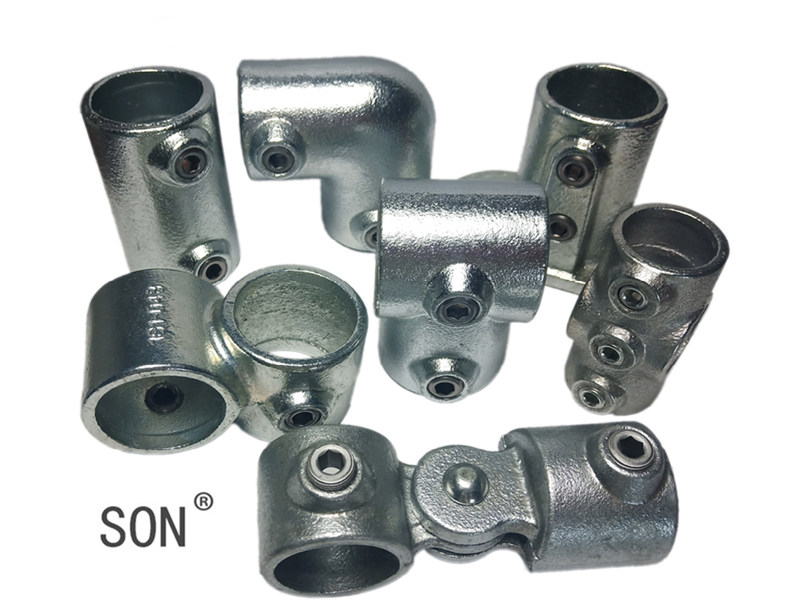

BS EN 1461 1999 hot dip galvanization

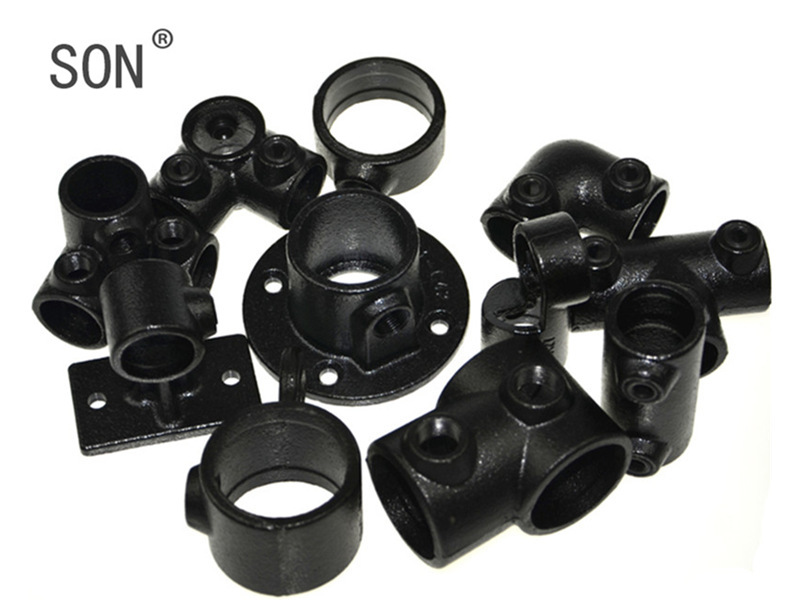

IRAM 1451-3:1995 epoxy coating


Dacromat two layers

Thread:

BS 2779:1986 1/4", 3/8"

Grub Screw:

ISO 4029, DIN 916

Weight Model:

Light, Medium, Heavy,

Packing:

By Cartons or by cartons then on the pallets

Chemical Composition:

Specified values %

C

Si

Mn

P

S

Cr

Ni

Mo

Cu

N

V

Co

Ti


2.4-2.9

1.4-1.9

0.4-0.65

<0.1

<0.2%









Mechnical Properties:

Specified Values

Rm  (MPa)

Rp0.2  (MPa)

A5X10  (%)

J  (-46C)

HB

%


Tensile strength

Limit of elasticity

Elongation

Charpy Impaction

Brinell Hardness

Ferrite Percentage


>=330mpa


>=8%


<=150HB
